Crosstown Commons Project

Project Details

TUTOR PERINI AFFILIATES

Lunda Construction Company
Contractor
Contract Amount: $300 Million

OWNER
Minnesota Department of Transportation

LOCATION
Minneapolis, MN

COMPLETION
2011

Project Description

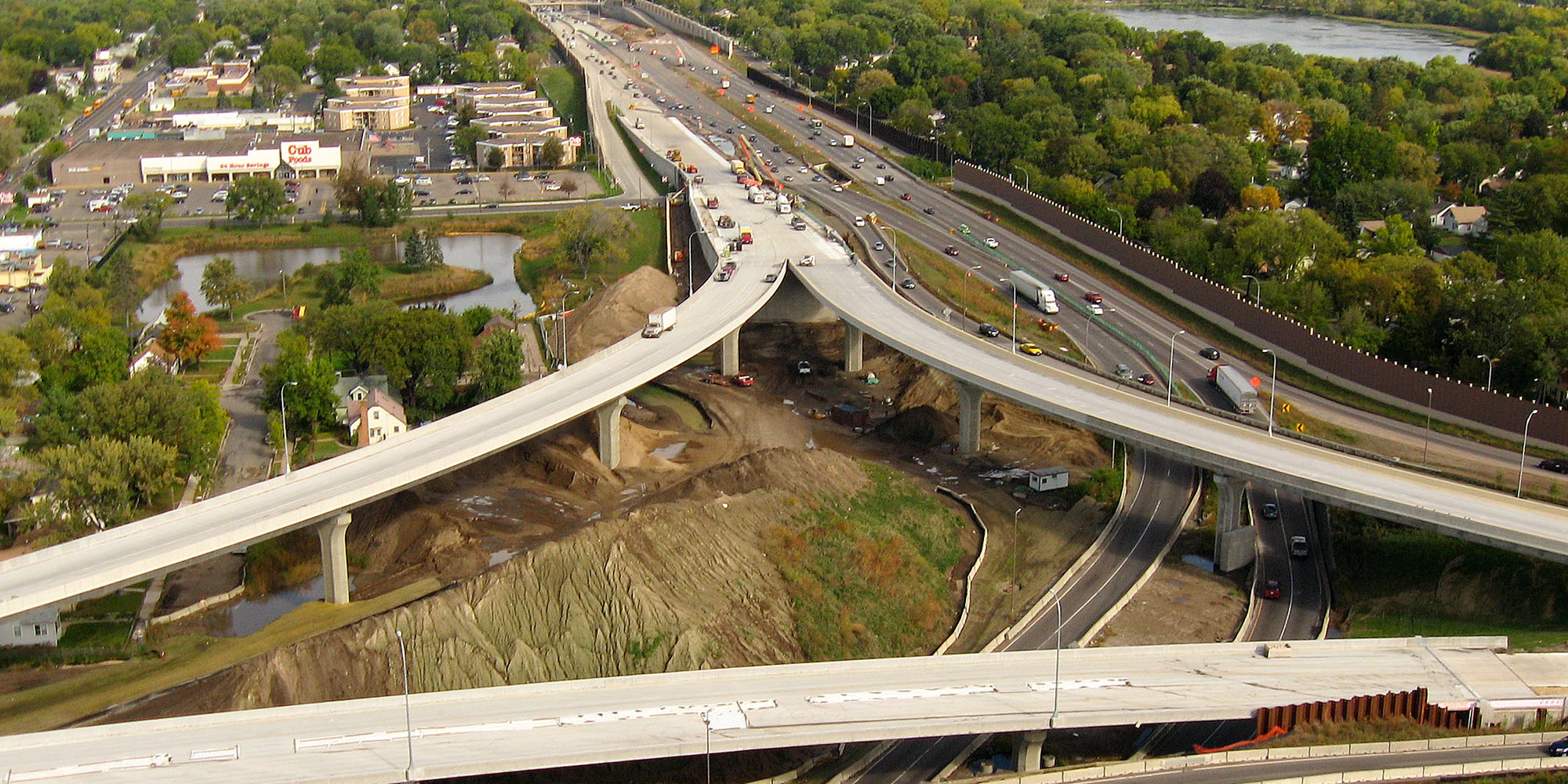

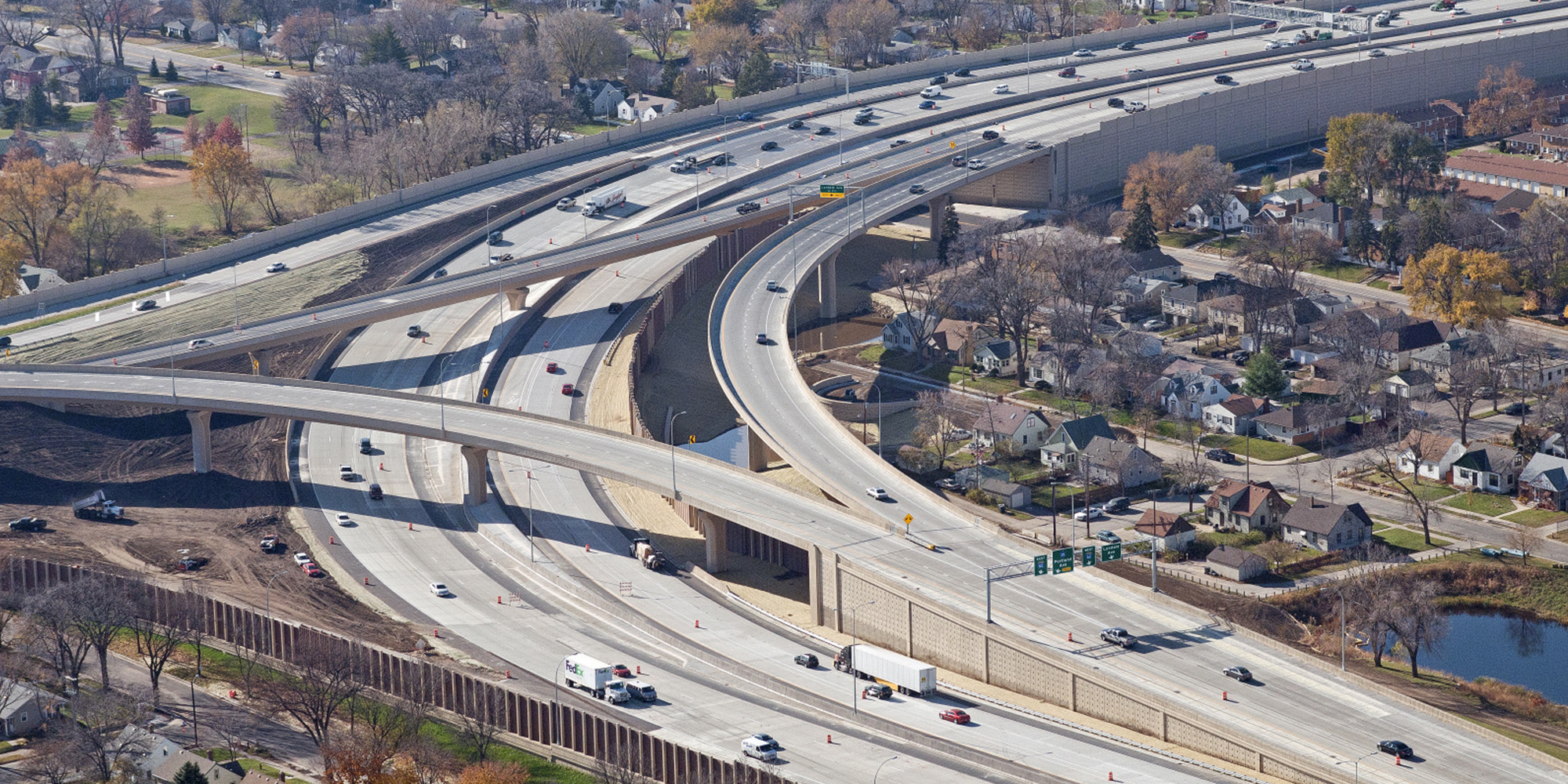

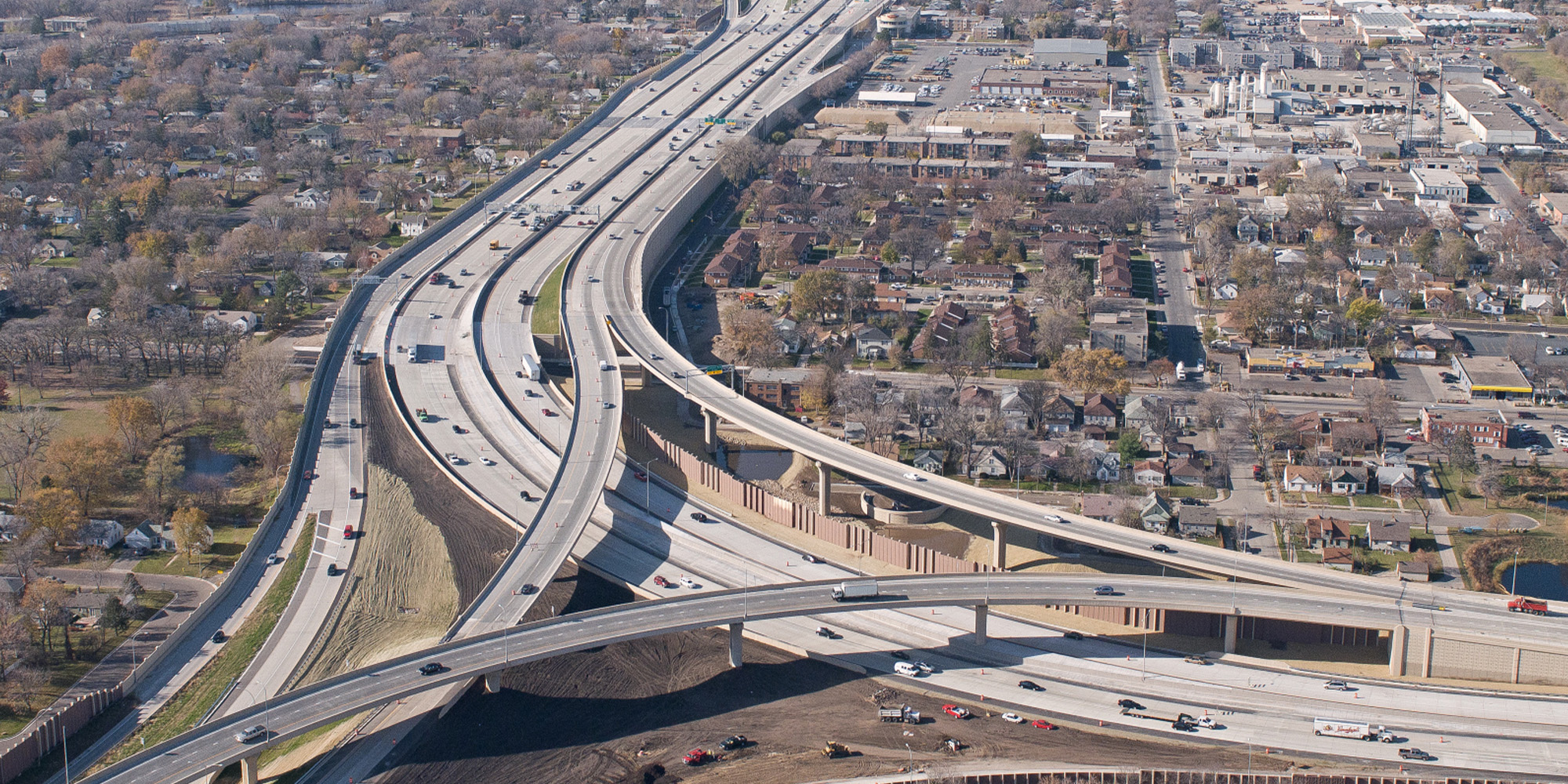

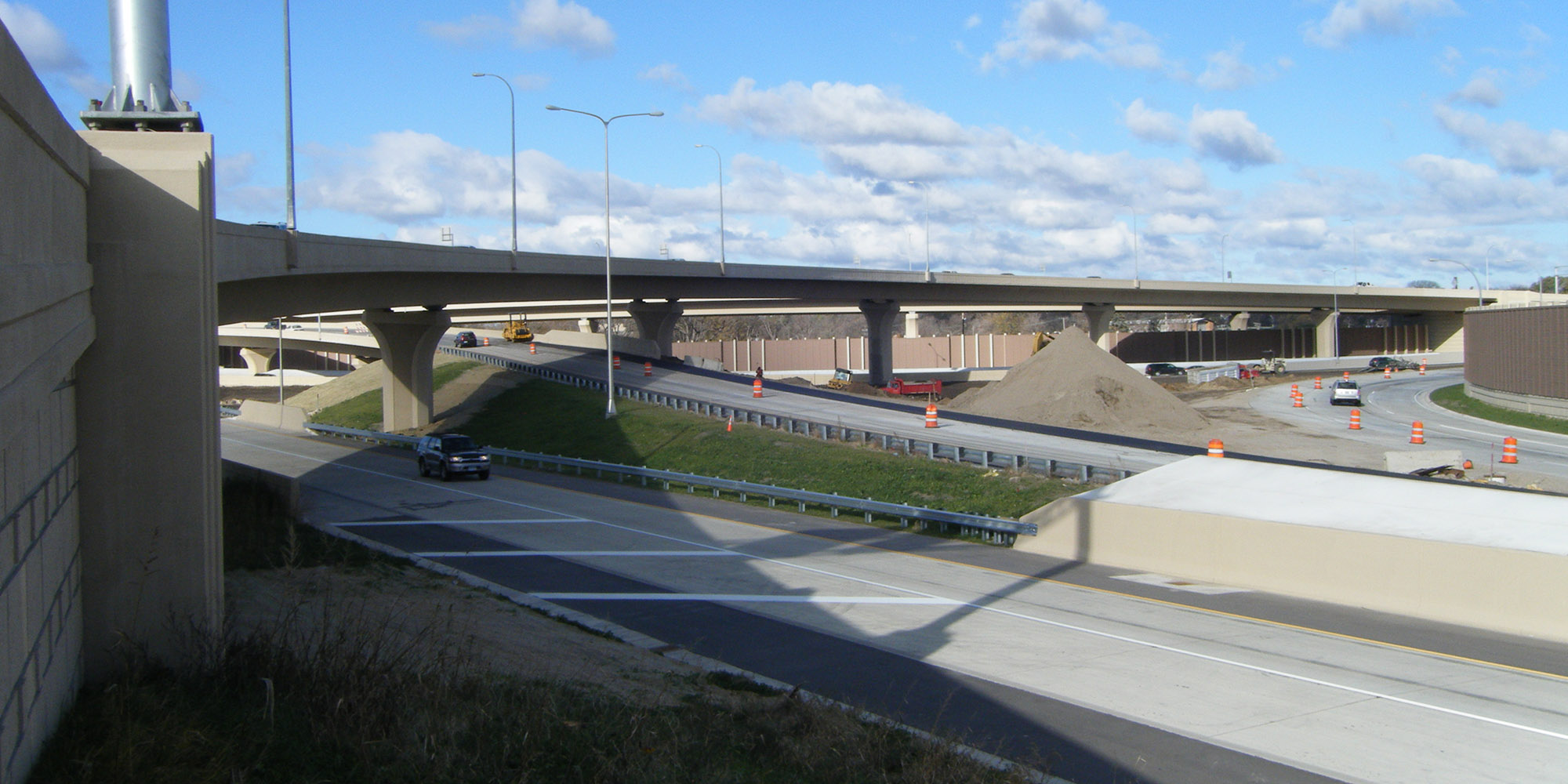

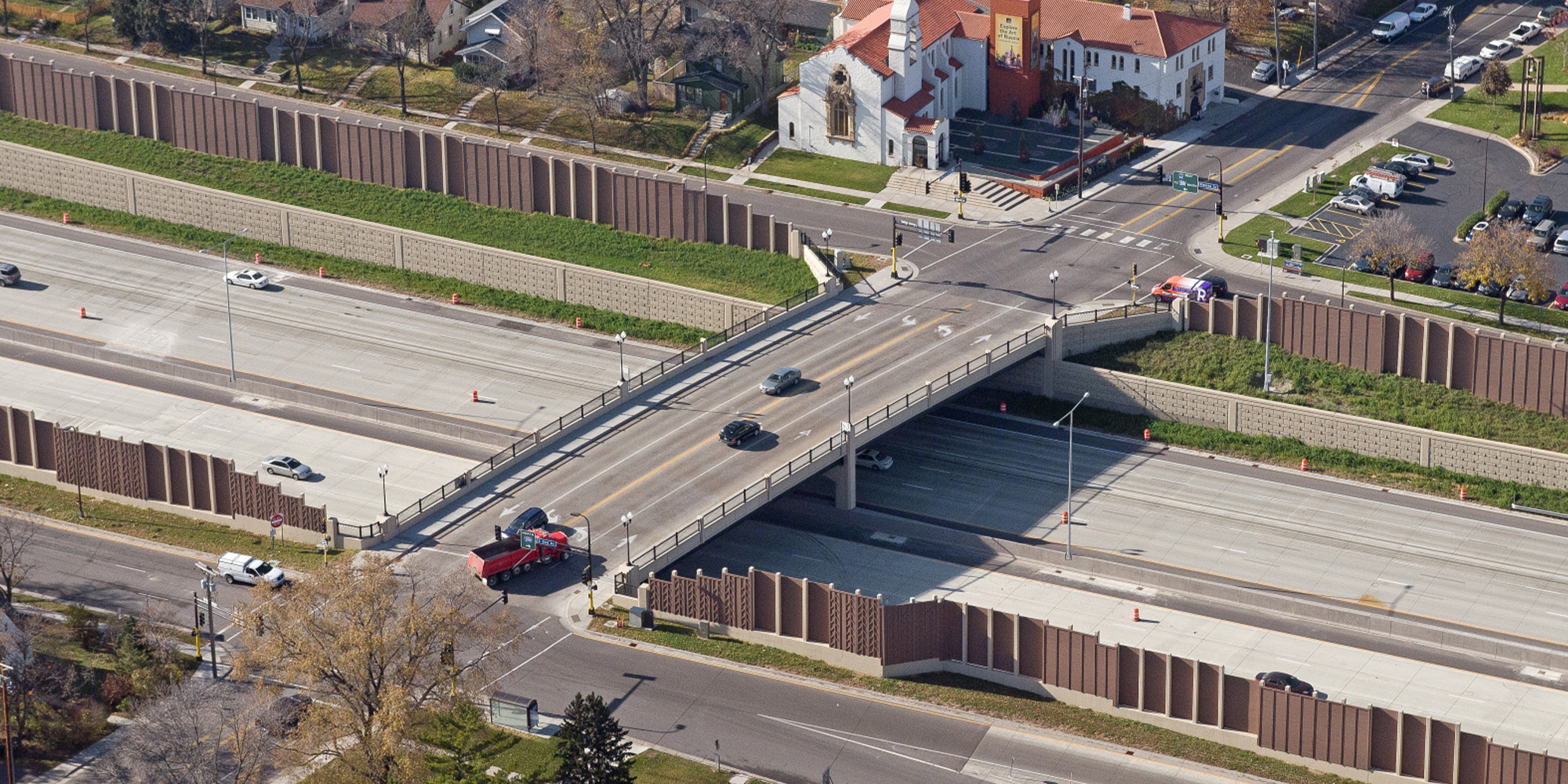

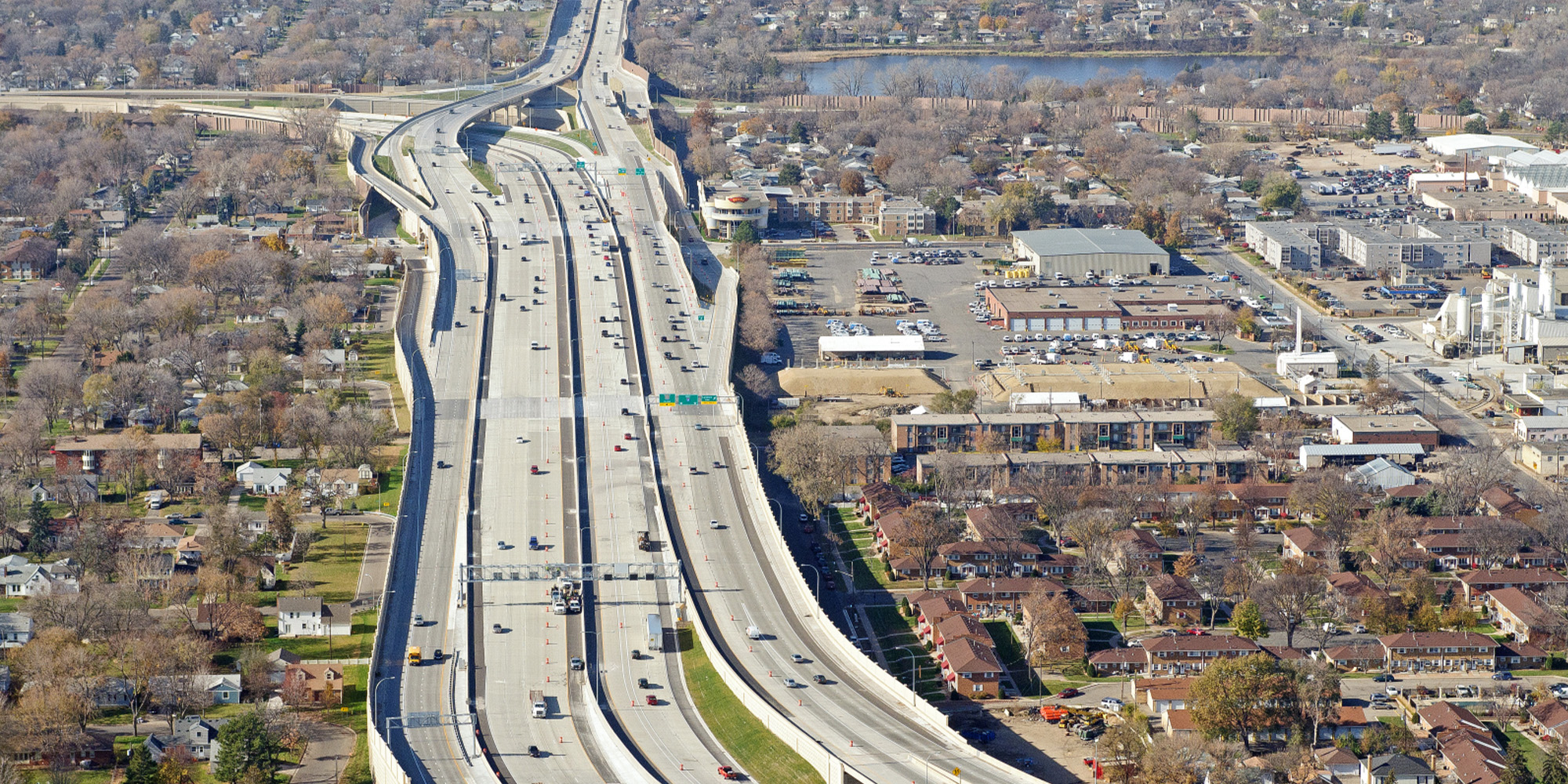

The Crosstown Commons Project included 29 bridges, six of which were precast concrete box structures constructed using the balanced cantilever method. Including all six structures, Lunda cast 461 segments that were eight feet tall, eight feet long, ranged in width from 45 feet to 55 feet, and weighed up to 80 tons. One of the biggest challenges and risks was finding a location large enough for a precast yard that would allow efficient transportation of the segments to the project site. The project is located in one of the busiest traffic corridors in the Minneapolis/St. Paul metro area. Lunda considered multiple sites and decided on its own facility located on TH52 in Rosemount, Minnesota, due in part to its access to the State Highway System. Even with the access to the State Highway System from Lunda's precast yard, getting the segments to the site was a challenge with traffic. To mitigate the risks of hauling and erecting segments during peak traffic hours, Lunda analyzed the delivery locations and developed a plan to deliver and erect segments at all hours of the day and night depending on the structure location. This allowed the work to progress as scheduled.
